Hoist Rings

Safe Lifting at any Angle



Will Not Yield to Heavy Side Loads
Safety Hoist Rings provide the maximum for lifting heavy loads and are designed to replace conventional lifting hardware and devices that have been outdated by new safety regulations.  High safety standards are especially important where every load lifted is a heavy load.  Our Safety Hoist Rings provide the kind of safety that protects against accidents before they occur...accidents caused when eyebolts break or lifting hooks disengage.  Safety Hoist Rings will not yield to heavy side loads within their capacity.  Unlike eyebolts, the hoist ring pivots 180° and swivels 360° to compensate for pitch, roll, and sway when lifting heavy unbalanced loads. Purchase the best Hoist Rings.

  • Available in metric or U.S. sizes.
  • Range of movement:  pivot 180°, swivel 360°.
  • Minimum safety factor: 5:1.
  • Meets Military Specification No. MIL-STD 1365(11) or MIL-STD 209C.
  • American-made heavy duty hoist rings are specified and used in nuclear energy equipment.
  • 100% magnetic particle inspected.
  • Meets OSHA standards.
  • Destructive testing by outside independent laboratories.

Packaging:  Sold individually.

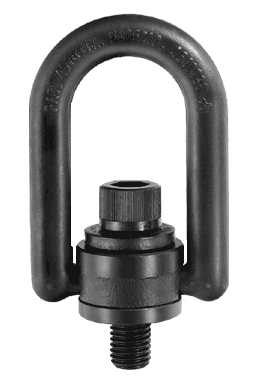

 Hoist Ring



Buy Safety Hoist Rings

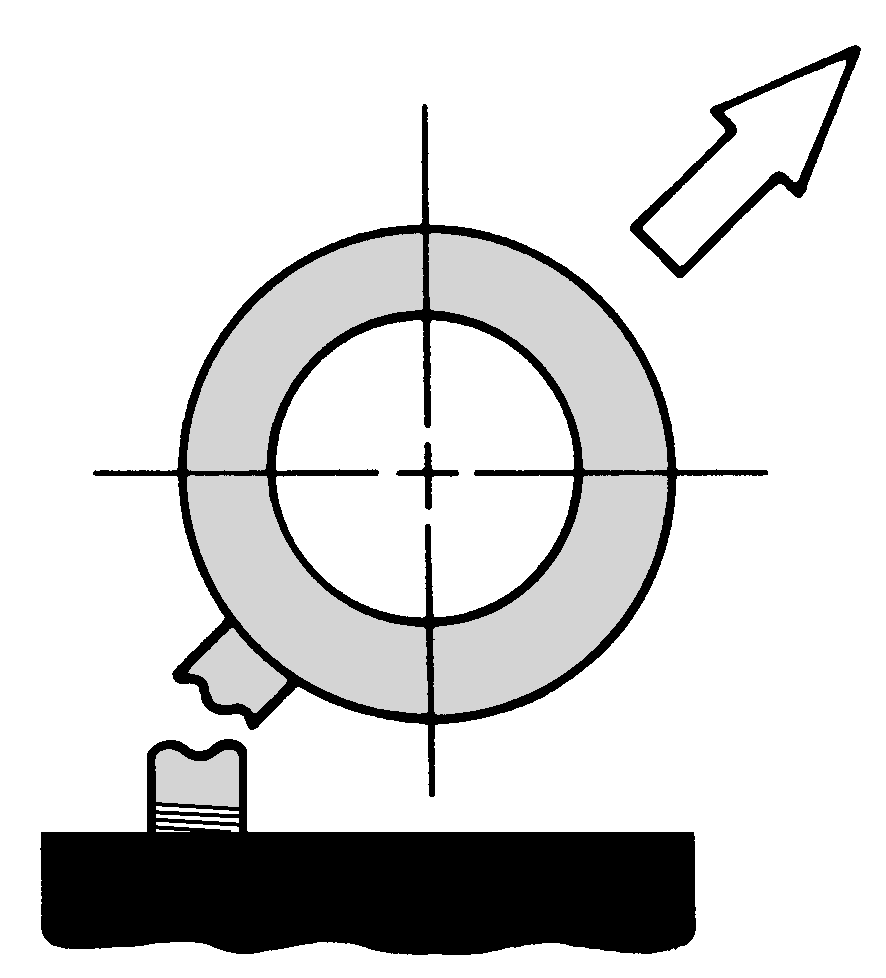

Dangerous
Conventional eyebolts can fail
when excessive side loads
are applied.

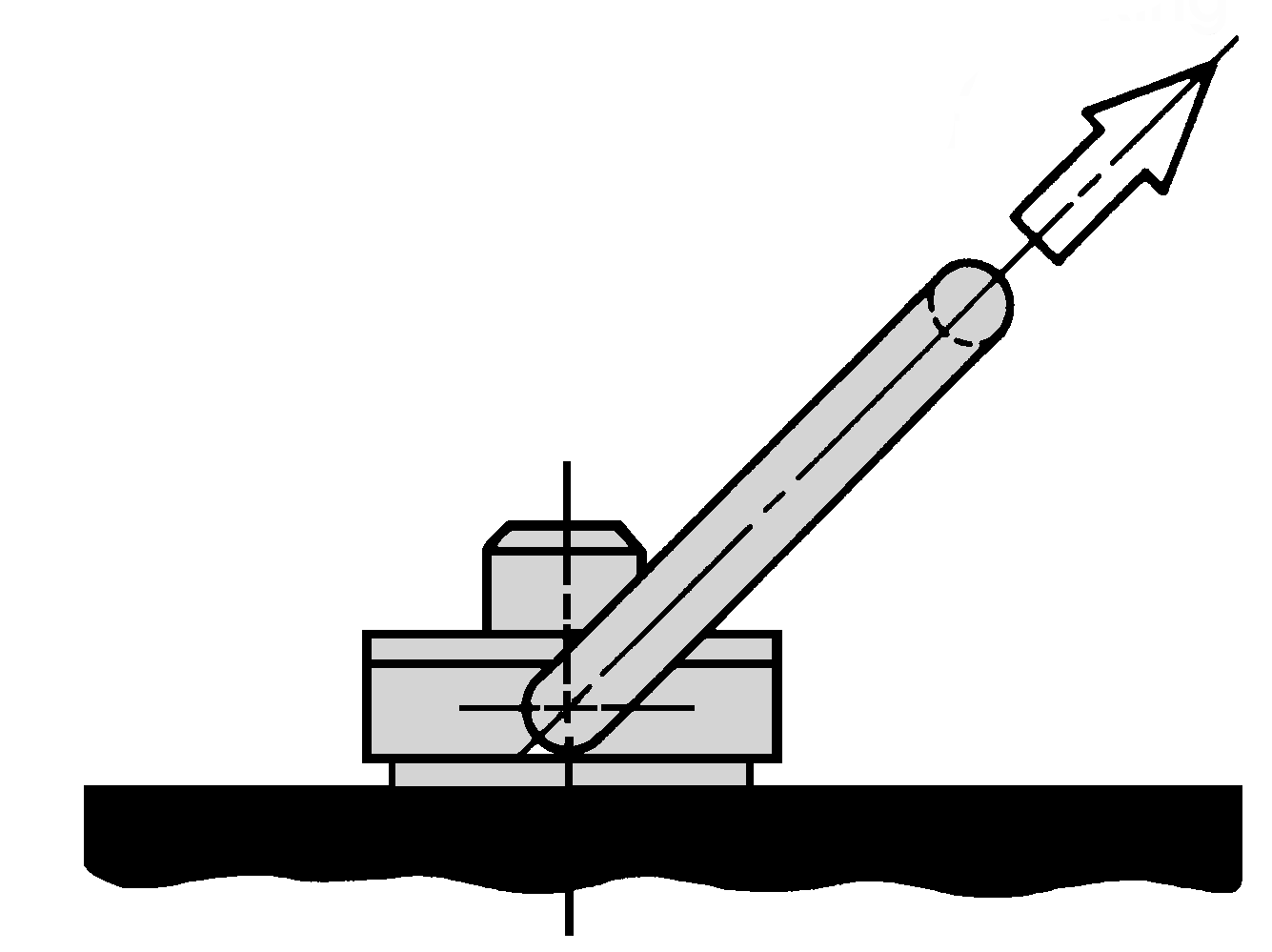

Safe
High tension loads are well
within the designated safety limits
of the Hoist Ring.

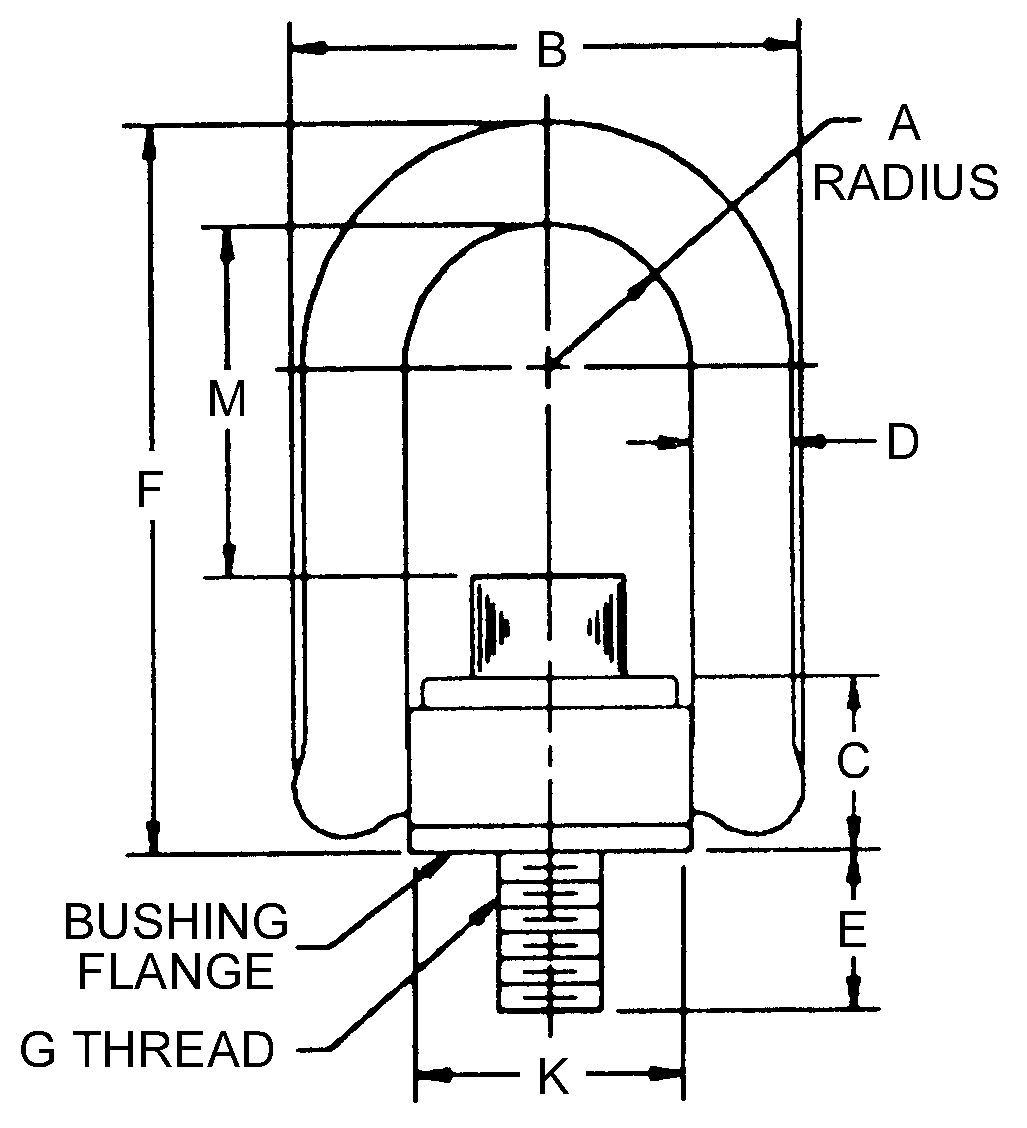

STANDARD SIZES (Inches)
PART
NO.		 RATED
LOAD		 A B C D E F G K TL
ft./lb.*		 M WT
lbs.

HR33112

550 lbs.

 0.65 2.29 0.96 0.44 0.56 3.23 1/4-20 1.25 5 1.57 0.50
HR33212 800 lbs.

0.65

 2.29 0.96 0.44 0.56 3.23 5/16-18 1.25 7 1.51 0.52
HR33214 800 lbs. 0.65 2.29 0.96 0.44 1.06 3.23 5/16-18 1.25 7 1.51 0.54

HR33312

 1000 lbs. 0.65 2.29 0.96 0.44 0.56 3.23 3/8-16 1.25 12 1.45 0.56

HR33314

 1000 lbs. 0.65 2.29 0.96 0.44 1.06 3.23 3/8-16 1.25 12 1.45 0.58
HR33512 2500 lbs. 1.00 3.50 1.50 0.75 0.75 5.31 1/2-13 1.89 28 2.56 1.71

HR33515

 2500 lbs 1.00 3.50 1.50 0.75 1.00 5.31 1/2-13 1.89 28 2.56 1.72

HR33316

 2500 lbs. 1.00 3.50 1.50 0.75 1.25 5.31 1/2-13 1.89 28 2.56 1.82

HR33612

 4000 lbs. 1.00 3.50 1.50 0.75 0.75 5.31 5/8-11 1.89 60 2.44 1.76

HR33614

 4000 lbs. 1.00 3.50 1.50 0.75 1.00 5.31 5/8-11 1.89 60 2.44 1.78

HR33615

 4000 lbs. 1.00 3.50 1.50 0.75 1.25 5.31 5/8-11 1.89 60 2.44 1.88

HR33714

 5000 lbs. 1.00 3.50 1.50 0.75 1.00 5.31 3/4-10 1.89 100 2.31 1.89

HR33716

 5000 lbs. 1.00 3.50 1.50 0.75 1.50 5.31 3/4-10 1.89 100 2.31 2.02

HR33108

 7000 lbs. 1.40 5.10 2.05 1.00 0.95 7.00 3/4-10 2.81 100 3.20 7.20
HR33102 7000 lbs. 1.40 5.10 2.05 1.00 1.20 7.00 3/4-10 2.81 100 3.20 7.23
HR33103 7000 lbs. 1.40 5.10 2.05 1.00 1.45 7.00 3/4-10 2.81 100 3.20 7.25
HR33101 8000 lbs. 1.40 5.10 2.05 1.00 1.20 7.00 7/8-9 2.81 160 3.07 7.33
HR33105 10000 lbs. 1.40 5.10 2.05 1.00 1.45 7.00 1-8 2.81 230 2.95 7.57
HR33106 10000 lbs. 1.40 5.10 2.05 1.00 1.20 7.00 1-8 2.81 230 2.95 7.63
HR33107 10000 lbs. 1.40 5.10 2.05 1.00 2.20 7.00 1-8 2.81 230 2.95 7.81
HR33402 15000 lbs. 2.00 6.75 2.87 1.25 1.88 9.92 1-1/4-7 3.88 470 3.74 15.74
HR33401 20000 lbs. 2.00 6.75 2.87 1.25 2.63 9.22 1-1/4-7 3.88 470 3.74 16.00
HR33420 20000 lbs. 2.00 6.75 2.87 1.25 2.63 9.22 1-3/8-6 3.88 670 3.62 17.20
HR33424 24000 lbs. 2.00 6.75 2.87 1.25 2.63 9.22 1-1/2-6 3.88 800 3.49 18.10
*Recommended Torque Load



METRIC SIZES (Millimeters)
Standard Tolerance: +/- .08mm
PART
NO.		 RATED
LOAD		 A B C D E F G K TL
ft./lb.		 M WT
lbs.
HR34212 400 kgs. 16.5 58.2 24.4 11.1 16 82.0 M8x1.25 31.8 38.5 9.5 0.24
HR34214 400 kgs. 16.5 58.2 24.4 11.1 21 82.0 M8x1.25 31.8 38.5 9.5 0.25
HR34312 450 kgs. 16.5 58.2 24.4 11.1 16 82.0 M10x1.50 31.8 36.5 16.0 0.25
HR34314 450 kgs. 16.5 58.2 24.4 11.1 26 82.0 M10x1.50 31.8 38.5 16.0 0.25
HR34515 1050 kgs. 25.4 88.9 38.1 19.1 25 134.9 M12x1.75 48.0 65.0 37.0 0.78
HR34516 1050 kgs. 25.4 88.9 38.1 19.1 32 134.9 M12x1.75 48.0 65.0 37.0 0.83
HR34614 1900 kgs. 25.4 88.9 38.1 19.1 25 134.9 M16x2.00 48.0 62.0 80.0 0.81
HR34615 1900 kgs. 25.4 88.9 38.1 19.1 32 134.9 M16x2.00 48.0 62.0 80.0 0.85
HR34714 2200 kgs. 25.4 88.9 38.1 19.1 25 134.9 M20x2.50 48.0 58.7 135.0 0.86
HR34716 2200 kgs. 25.4 88.9 38.1 19.1 38 134.9 M20x2.50 48.0 58.7 135.0 0.92
HR34101 3000 kgs. 35.6 129.5 52.1 25.4 28 177.8 M20x2.50 71.4 81.0 135.0 3.14
HR34102 4200 kgs. 35.6 129.5 52.1 25.4 25 177.8 M24x3.00 71.4 76.3 311.0 3.29
HR34103 4200 kgs. 35.6 129.5 52.1 25.4 38 177.8 M24x3.00 71.4 76.3 311.0 3.30
HR34105 4500 kgs. 35.6 129.5 52.1 25.4 38 177.8 M30x3.50 71.4 70.3 311.0 3.44
*Recommended Torque Load


SFP hoist rings are comparable with the following brands: Actex, Albest, All-American, All-Lifts, American Lift, American, American Drill Bushing, Carr Lane, Charleston Rigging, Chicago Hardware, CM Industrial, Columbus McKinnon, D-M-E, David Round, Deluxe Systems, Eastern Rigging, Jergens, Ken Forging, Lamco, Lift All, Marlin, Material Flow & Conveyor, Mel, McKissick-Crosby, Mel-Ba, Mueller Impact, Rud Chain, Te-Co, Torq Hoist, United California, Wirefab.
