Battenfeld Nozzles

We manufacture nozzles for virtually all makes and models of molding machines, as shown in the list below. Our extensive designer's library consists of hundreds of prints designed for your specific molding machine. In addition to standard designs, we can also custom design nozzles to match your exact specifications.


Battenfeld Molding Machines


Model No.
50/210, 300, 350, 500, 500/210, 750, 750/130, 750/350, 950, 1000/210, 1000/350, 1000/525, 1300/525, 1300/750, 1600/750, 1600/1000, 2100/1000, 2100/1330, 2700/1330, 2700/1900, 2700/2800, 3500/1330, 3500/1900, 3500/2800, 4500/1900, 4500/2800, 4500/4500, BA 200, BA 250/50 CDC, BA 400/125 CDC, BA 600/200 CDC, BA 800/315 CDC, BA 1000/315 CDC, CM 40, EcoPower 55, EcoPower 90, EcoPower 110, EcoPower 160, EcoPower 180, EcoPower 240, EcoPower 300, EcoPower Medical Series, MacroPower 400, MacroPower 450, MacroPower 500, MacroPower 550, MacroPower 650, MacroPower 700, MacroPower 850, MacroPower 900, MacroPower 1000, MacroPower 1100, MacroPower 1300, MacroPower 1500, MacroPower 1600, MacroPower 1800, MacroPower 2000, MacroPower E 400, MacroPower E 450, MacroPower E 500, MacroPower E 550, MacroPower E 650, MacroPower E 700, MacroPower E 850, MacroPower E 900, MacroPower E 1000, MacroPower E 1100, MacroPower E XL 450, MacroPower E XL 550, MacroPower E XL 700, MacroPower E XL 900, MacroPower MC 400, MacroPower MC 450, MacroPower MC 500, MacroPower MC 550, MacroPower MC 650, MacroPower MC 700, MacroPower MC 850, MacroPower MC 900, MacroPower MC 1000, MacroPower MC 1100, MacroPower MC 1300, MacroPower MC 1500, MacroPower MC 1600, MacroPower MC XL 450, MacroPower MC XL 550, MacroPower MC XL 700, MacroPower MC XL 900, MacroPower XL 450, MacroPower XL 550, MacroPower XL 700, MacroPower XL 900, MicroPower 5, MicroPower 15, SmartPower 25, SmartPower 35, SmartPower 50, SmartPower 60, SmartPower 80, SmartPower 90, SmartPower 110, SmartPower 120, SmartPower 160, SmartPower 180, SmartPower 210, SmartPower 240, SmartPower 300, SmartPower 350, SmartPower Combimould, TM180, TM240, TM300, TM400, TM500, TM Series 500/130, TM Xpress 160, TM Xpress 210, TM Xpress 270, TM Xpress 350, TM Xpress 450, VM 60, VM 80, VM 100, VM 150, VM 200, VM R 40, VM R 60, VM R 75, VM R 110, VM R 150, VM R 200, VM R 270

Injection Units
130, 210, 350, 525, 750, 1000, 1330, 1900, 2800

Bore Sizes
18mm Battenfeld Nozzle, 22mm Battenfeld Nozzle, 25mm Battenfeld Nozzle, 28mm Battenfeld Nozzle, 30mm Battenfeld Nozzle, 35mm Battenfeld Nozzle, 40mm Battenfeld Nozzle, 45mm Battenfeld Nozzle, 50mm Battenfeld Nozzle, 55mm Battenfeld Nozzle, 65mm Battenfeld Nozzle, 75mm Battenfeld Nozzle, 85mm Battenfeld Nozzle, 100mm Battenfeld Nozzle, 110mm Battenfeld Nozzle, 120mm Battenfeld Nozzle, 140mm Battenfeld Nozzle


Arburg
Autojector
Battenfeld
Beloit
Bipel
Borche
Boston Matthews
Boy
Bucher
Chuan Lih Fa
Cincinnati
Cincinnati ACT /
Roboshot
Cincinnati Roboshot
Cincinnati Vista
Cincinnati Vista Sentry
Demag
Desma
Dima
Dong Shin
Egan
Engel
Farrel
Fellows
Ferromatik
Fortune
Fu Chun Shin
Gloenco
Gloucester
Gluco
Goldstar
Haitian
Hettinga
Hishiya
HPM
Hull
Husky
Illinois Precision
Impco
Jaco
Johns
Jomar
JSW
Kawaguchi
Kenplas
Klockner Ferromatik
Klockner Windsor
Krauss-Maffei
Kuasy
Lester
Lien Fa
Lombard

Maplan
Martinand
McNeil
Meiki
Metalmec
Mini-jector
MIR
Mitsubishi
Moslo
Multiplas
Natco
Negri Bossi
Netstal
New Britain
Newbury
Niigata
Nissei
Nissin
Pentaject
Presma
Promax
Pyramid
Reed Prentice
Rutil
Sandretto
Seiko

Shinwa Seiki
Sodick
Stokes
Stork
Stubbe
Sumitomo
TMC
Toshiba
Toyo
Triulzi
Trubor
Trueblood
UBE
Van Dorn
Van Dorn / Demag
Van Dorn / GT

Wabash MPI
Welltec
Willert
Windsor
YCI - Supermax

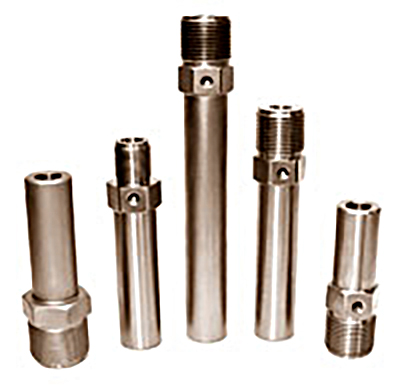

We offer three standard nozzle designs to match your molding needs. Choose from General Purpose, Reverse Taper and Full Taper. All designs are available as a Replaceable Tip Type or Solid Body Type and are available with or without TC holes. Cartridge heated nozzles are also available.

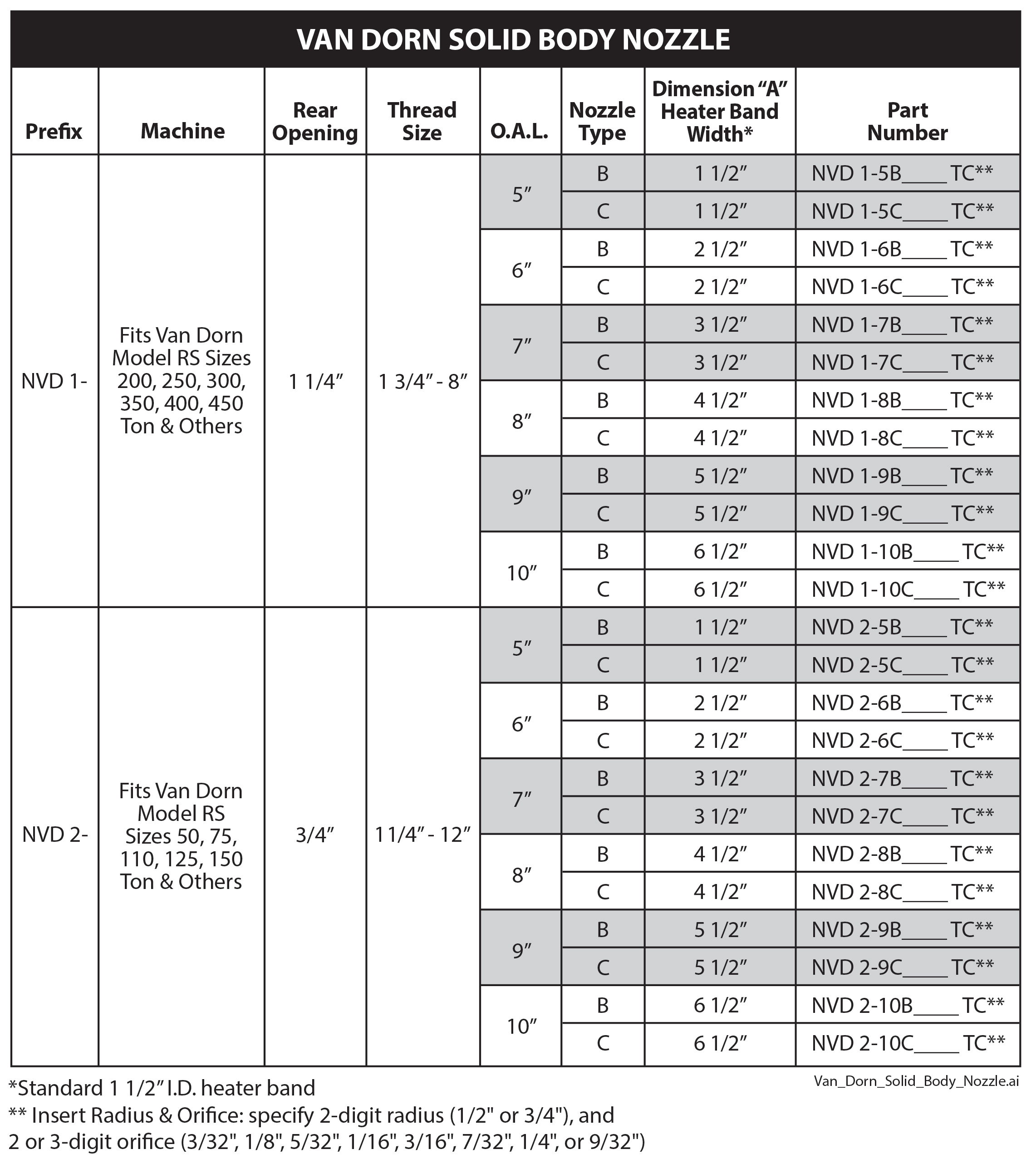

*Insert Radius & Orifice: specify 2-digit radius (1/2" or 3/4"), and 2 or 3-digit orifice (3/32", 1/8", 5/32", 1/16", 3/16", 7/32", 1/4", or 9/32").

Thermocouple Holes

All prices include thermocouple holes. Van Dorn nozzles are manufactured with one standard 1/8 NPT thermocouple hole. For special TC hole, specify thread size and depth.



Battenfeld Molding Machines


Model No.
50/210, 300, 350, 500, 500/210, 750, 750/130, 750/350, 950, 1000/210, 1000/350, 1000/525, 1300/525, 1300/750, 1600/750, 1600/1000, 2100/1000, 2100/1330, 2700/1330, 2700/1900, 2700/2800, 3500/1330, 3500/1900, 3500/2800, 4500/1900, 4500/2800, 4500/4500, BA 200, BA 250/50 CDC, BA 400/125 CDC, BA 600/200 CDC, BA 800/315 CDC, BA 1000/315 CDC, CM 40, EcoPower 55, EcoPower 90, EcoPower 110, EcoPower 160, EcoPower 180, EcoPower 240, EcoPower 300, EcoPower Medical Series, MacroPower 400, MacroPower 450, MacroPower 500, MacroPower 550, MacroPower 650, MacroPower 700, MacroPower 850, MacroPower 900, MacroPower 1000, MacroPower 1100, MacroPower 1300, MacroPower 1500, MacroPower 1600, MacroPower 1800, MacroPower 2000, MacroPower E 400, MacroPower E 450, MacroPower E 500, MacroPower E 550, MacroPower E 650, MacroPower E 700, MacroPower E 850, MacroPower E 900, MacroPower E 1000, MacroPower E 1100, MacroPower E XL 450, MacroPower E XL 550, MacroPower E XL 700, MacroPower E XL 900, MacroPower MC 400, MacroPower MC 450, MacroPower MC 500, MacroPower MC 550, MacroPower MC 650, MacroPower MC 700, MacroPower MC 850, MacroPower MC 900, MacroPower MC 1000, MacroPower MC 1100, MacroPower MC 1300, MacroPower MC 1500, MacroPower MC 1600, MacroPower MC XL 450, MacroPower MC XL 550, MacroPower MC XL 700, MacroPower MC XL 900, MacroPower XL 450, MacroPower XL 550, MacroPower XL 700, MacroPower XL 900, MicroPower 5, MicroPower 15, SmartPower 25, SmartPower 35, SmartPower 50, SmartPower 60, SmartPower 80, SmartPower 90, SmartPower 110, SmartPower 120, SmartPower 160, SmartPower 180, SmartPower 210, SmartPower 240, SmartPower 300, SmartPower 350, SmartPower Combimould, TM180, TM240, TM300, TM400, TM500, TM Series 500/130, TM Xpress 160, TM Xpress 210, TM Xpress 270, TM Xpress 350, TM Xpress 450, VM 60, VM 80, VM 100, VM 150, VM 200, VM R 40, VM R 60, VM R 75, VM R 110, VM R 150, VM R 200, VM R 270

Injection Units
130, 210, 350, 525, 750, 1000, 1330, 1900, 2800

Bore Sizes
18mm Battenfeld Nozzle, 22mm Battenfeld Nozzle, 25mm Battenfeld Nozzle, 28mm Battenfeld Nozzle, 30mm Battenfeld Nozzle, 35mm Battenfeld Nozzle, 40mm Battenfeld Nozzle, 45mm Battenfeld Nozzle, 50mm Battenfeld Nozzle, 55mm Battenfeld Nozzle, 65mm Battenfeld Nozzle, 75mm Battenfeld Nozzle, 85mm Battenfeld Nozzle, 100mm Battenfeld Nozzle, 110mm Battenfeld Nozzle, 120mm Battenfeld Nozzle, 140mm Battenfeld Nozzle
