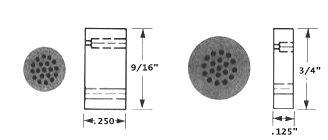

Dispersion Discs

Installed in nozzle tip for quick access, improved color mixing, and prevention of foreign material passage.

Features:

  • Counterbored to receive SFP 9/16" Diameter Dispersion Discs

  • Radius: 1/2" or 3/4"

  • Orifice: 1/16" - 3/8"

PART NUMBER: NT-GPDD__ __

Example: NT-GPDD12116 for 1/2" RADIUS 1/16" ORIFICE

PART # # OF HOLES OD HOLE DIAMETER
DD-1934025 19 3/4" .025"
DD-1934050 19 3/4" .050"
DD-19916025 19 9/16" .025"
DD-19916050 19 9/16" .050"
DD-7916085 7 9/16" .085"

(Can be used behind any tip)
