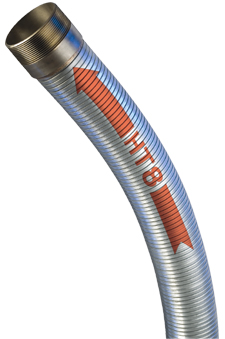

High Volume Transfer Metal Hose

Save downtime and keep trucks and lines moving efficiently. Our metal hose is designed for high volume movement of plastic resins from transportation vehicles to storage units. It comes to you ready-to-use with no need for welding. 19 ft. OAL assembly with Schedule 40 TOE pre-welded on each end. Buy your metal hose from Services for Plastics, Inc. today.

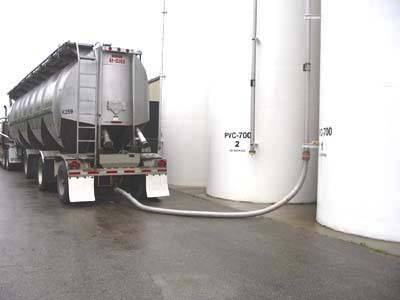

Metal Hose Example Use 1

Metal hose moving plastic resin to a storage facility

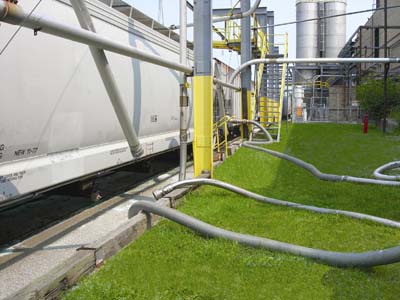

Metal Hose Use Example 2

Metal hoses used to unload railcars

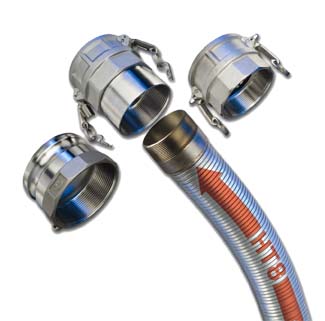

Hose Tec Metal Hose and Accessories
  • Pre-welded Thread-One-End (TOE) assemblies
  • Ready-to-use 19-ft. Overall Length (OAL) assembly with Schedule 40 TOE pre-welded on each end
  • Stainless steel interlock hose 0.018" armor/0/015" liner in 4" and 6" sizes.
  • Ideally suited for pneumatic trailers, railcar and other transport unloading and in-plant transfer applications
  • Swivel couplers and adapters make hose handling easier and help to extend hose life!



Metal Hose Assembly
PART
NO.		 SIZE WEIGHT SPECIFICATIONS

SS184x228STOE

 4" x 19' Apprx. 75.0 lbs. 4" x 19' OAL 0.018" armor/0.015 liner w/ threaded NPT TOE each end
SS186X228STOE 6" x 19' Apprx. 115.0 lbs. 6" x 19' OAL 0.018" armor/0.015" liner w/ threaded NPT TOE each end

Hose-tec Metal Hose Assembly



Threaded Swivel Aluminum Female Coupler
w/ Stainless Steel Threaded NPT Insert
PART
NO.		 SIZE WEIGHT SPECIFICATIONS

KAS-C401

 4" 6.28 lbs. Complete set including hex wrench and set screw ball bearings and o-rings

KAS-C601

 6"  7.87 lbs. Complete set including hex wrench and set screw ball bearings and o-rings

Aluminum Threaded Swivel Female Coupler w/ Stainless Steel Threaded NPT Insert



Threaded Swivel Aluminum Male Adaptor
w/ Stainless Steel Threaded NPT Insert
PART
NO.		 SIZE WEIGHT SPECIFICATIONS

KAS-E401

 4" 4.23 lbs. Complete set including hex wrench and set screw ball bearings and o-rings

KAS-E601

 6"  6.21 lbs. Complete set including hex wrench and set screw ball bearings and o-rings

Stainless Steel Swivel Male Adaptor w/ Stainless Steel NPT Insert



Threaded Swivel Stainless Steel Male Adaptor
w/ Stainless Steel Threaded NPT Insert
PART
NO.		 SIZE WEIGHT SPECIFICATIONS

KSS-E401

 4" 6.22 lbs. Complete set including hex wrench and set screw ball bearings and o-rings

KSS-E601

 6"  10.42 lbs. Complete set including hex wrench and set screw ball bearings and o-rings

Threaded Swivel Aluminum Male Adaptor w/Stainless Steel Threaded NPT Insert



Part "A" Quick-Acting Male Adaptor x Female NPT
PART
NO.		 SIZE WEIGHT SPECIFICATIONS

AL-A400

 4" 1.34 lbs. Aluminum

SS304-A400

 4" 3.74 lbs. Stainless Steel (SS304)

SS-A400

 4" 3.74 lbs. Stainless Steel (SS316)

AL-A600

 6" 2.00 lbs. Aluminum

SS304-A600

 6" 8.55 lbs. Stainless Steel (SS304)

SS-A600

 6" 8.55 lbs. Stainless Steel (SS316)

Quick-acting Male Adaptor x Female NPT



Part "D" Quick-Acting Female Coupler x Female NPT
PART
NO.		 SIZE WEIGHT SPECIFICATIONS

AL-D400

 4" 2.82 lbs. Aluminum

SS304-D400

 4" 6.50 lbs. Stainless Steel (SS304)

SS-D400

 4" 6.50 lbs. Stainless Steel (SS316)

AL-D600

 6" 5.11 lbs. Aluminum

SS304-D600

 6" 11.51 lbs. Stainless Steel (SS304)

SS-D600

 6" 11.51 lbs. Stainless Steel (SS316)

Quick-acting Female Coupler x Female NPT



White Neoprene (FDA) Gaskets for Quick-Acting Couplings

PART
NO.		 SIZE SPECIFICATIONS

WNG-400

 4" Sold in Packages of 10
WNG-600 6" Sold in Packages of 10


SFP hose is compatible with the following brands: Accuflex, Ace, Armstrong, BDI, delafield, Durodyne, Eaton, Flexcraft, gates, Goodyear, HMD/Thermoid, Jackson Industries, Kord, Kuriyama, Lab Industrial, Lincoln, Nova Flex, NRP Jones, Parker, Parker-Hannifin, Powertrack, Riverbend, Salem-Republic, Senior Flexonics, Swan Hose, TCH, Thermoid, Tifco, Tift, Titan industries, US Hose, Willcox.
