Softdrop Mold Chutes stop your parts from scattering randomly in the “drop zone”. Softdrop Chutes ensure your parts land on your conveyor or in your packing case and not on the floor.
The unique design of the soft drop mold chute lets it attach under the mold As the mold opens your delicate parts fall gently into the Soft Drop chute and are slowly transferred on to the conveyor.
Soft Drop chutes are designed for applications where delicate parts need to be transferred from your mold to your conveyor without scratching or marking them. In applications where you have multi cavity molds soft Drop chutes can be designed to keep parts separated further reducing damage. All Soft Drop Chutes can be attached to the machine using either magnets or custom support harnesses. Velcro straps allow precise adjustment of the chute to prevent loss of parts from uncontrolled ejection's.
Mold Chutes are easy to install and remove, with some assembly of hardware required. Each Kit contains 1 Mold Chute, mounting hardware, and the required number of attaching magnets for the model of Chute.
Looking for something Custom? We now have the ability to create custom softdrop mold chutes sizes. Click the For More Information link above to download the order form.
|
||||||

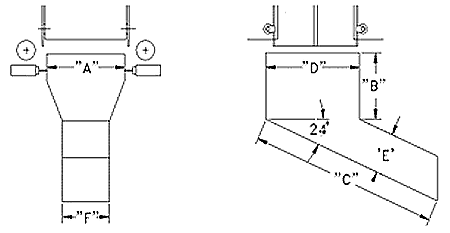

| MODEL NO. |
MOLD WIDTH "A" |
CHUTE HEIGHT "B" |
CHUTE LENGTH "C" |
MOLD OPEN "D" |
DISCHARGE HEIGHT "E" |
|
| SD-25 | 10" (25cm) | 22" (56cm) | 24" (61cm) | 8" (20cm) | 6" (15cm) | |
| SD-30 | 11" (28cm) | 23" (58cm) | 26" (66cm) | 10" (25cm) | 6" (15cm) | |
| SD-35 | 12" (30cm) | 24" (61cm) | 28" (71cm) | 10" (25cm) | 6" (15cm) | |
| SD-40 | 13" (33cm) | 25" (63cm) | 30" (76cm) | 12" (30cm) | 6.5" (16.5cm) | |
| SD-45 | 14" (35cm) | 26" (66cm) | 32" (81cm) | 14" (35cm) | 6.5" (16.5cm) | |
| SD-50 | 16" (40cm) | 27" (69cm) | 34" (86cm) | 14" (35cm) | 6.5" (16.5cm) | |
| SD-55 | 18" (46cm) | 28" (71cm) | 36" (91cm) | 16" (40cm) | 7" (18cm) | |
| SD-60 | 20" (51cm) | 29" (74cm) | 38" (96cm) | 18" (45cm) | 7" (18cm) | |
| SD-65 | 22" (56cm) | 30" (76cm) | 40" (102cm) | 18" (45cm) | 7.5" (19cm) | |
| SD-70 | 24" (61cm) | 31" (79cm) | 42" (107cm) | 18" (45cm) | 7.5" (19cm) | |
| SD-75 | 26" (66cm) | 32" (81cm) | 44" (112cm) | 20" (50cm) | 8" (20.5cm) | |
| SD-80 | 28" (71cm) | 33" (84cm) | 46" (117cm) | 20" (50cm) | 8" (20.5cm) | |
| SD-85 | 30" (76cm) | 34" (86cm) | 48" (122cm) | 22" (55cm) | 8.5" (21.5cm) | |
| SD-90 | 32" (81cm) | 35" (89cm) | 50" (127cm) | 22" (55cm) | 8.5" (21.5cm) | |
| SD-95 | 34" (86cm) | 36" (91cm) | 52" (132cm) | 23.5" (60cm) | 9" (22.5cm) | |
| SD-100 | 36" (91cm) | 37" (94cm) | 56" (142cm) | 23.5" (60cm) | 9" (22.5cm) | |
| SD-105 | 38" (96cm) | 38" (96cm) | 60" (152cm) | 33.5" (65cm) | 9.5" (23.5cm) | |
