TSD Series

Dehumidifying Dryers







TSD Series Dehumidifying Dryers feature true closed-loop drying technology.
The patented indexing desiccant carousel eliminates dew point and temperature
spikes.  Dehumidified air cools regenerated desiccant  and does not reload the
with moist, ambient air like most conventional dryers.




Features:
  • Temperatures to 375° F
  • Throughput of 10 to 100 Pounds Per Hour
  • True Closed-Loop Drying Technology
  • Patented Indexing Desiccant Carousel
  • Microprocessor Controlled

TSD Series Dehumidifying Dryers utilize patented technology to eliminate dew point and temperature spikes.  Three desiccant tanks present dry desiccant to the material drying circuit more frequently assuring uniform temperature and dew point.

By using dehumidified air to cool regenerated desiccant cartridges, the cooling cycle reclaims residual heat of regeneration and does not preload most, ambient air into the desiccant.

No-tools access makes the unit easy to clean the regeneration and process filters, as well as change desiccant tanks or service the unit in a quick and simple manner.

The microprocessor control makes the TSD Series easy to use.  Simply enter the drying temperature setpoint and press the RUN button.  The microprocessor control does the rest. The self-monitoring control even diagnoses and alerts you to any problems.

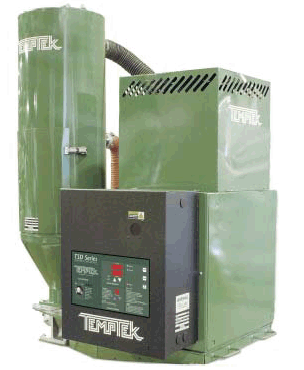

TSD DRYER w/drying hopper and hopper/dryer mounting brackets shown




TSD Series Dryer Microprocessor Control


TSD HUMIDIFYING DRYER SPECIFICATION
  TSD-15 TSD-30 TSD-60
PERFORMANCE AIR FLOW t3/min. 15 30 60
DRYING TEMP 160° F to 375° F 160° F to 375° F 160° F to 375° F
DEW POINT -40° F -40° F -40° F
VOLTAGE 208 V/ 3 phase/ 60 Hz 13.3 17.7 29.6
240 V/ 3 phase/ 60 Hz 11.8 15.7 26.2
480 V/ 3 phase/ 60 Hz 9.0 8.0 13.2
TOTAL KW
(BTU/Min.)		 6.2 7.3 10.8
WATER REQUIREMENTS RECOMMENDED
TEMP.		 70° F to 90° F 70° F to 90° F 70° F to 90° F
WATER FLOW
(GPM)		 3.0 3.0 3.0
DIMENSIONS HEIGHT 30.5" 36.12" 4."
OVERALL
WIDTH		 21.5" 36.5" 30.5"
CONTROL
WIDTH		 12.25" 14.25" 14.25"
DEPTH 27.5" 28.5" 31"
CONTROL
DEPTH		 9.0" 9.0" 9.0"
RECOMMENDED HOPPER STANDARD TH14-2 TH18-4 TH24-8
OPTIONAL TH14-3 TH18-6 TH24-12
WEIGHT
(INSTALLED)		 165 lbs 215 lbs 280 lbs
