July 2011
|
Need Air-Water-Oil Hose?
Services for Plastics has hose to satisfy all of your needs!
SFP hose is compatible with the following brands: Accuflex,
Ace, Armstrong, BDI, delafield, Durodyne, Eaton, Flexcraft, gates,
Goodyear, HMD/Thermoid, Jackson Industries, Kord, Kuriyama, Lab
Industrial, Lincoln, Nova Flex, NRP Jones, Parker, Parker-Hannifin,
Powertrack, Riverbend, Salem-Republic, Senior Flexonics, Swan Hose, TCH,
Thermoid, Tifco, Tift, Titan industries, US Hose, Willcox.
Parker® GST
II™ General Service Hose
For Transferring Air and Water
An economical and versatile general purpose hose. Excellent for air and
water service. EPDM tube and cover resists heat,
sunlight, ozone and weathering. GST II hose exceeds RMA class C medium oil
resistance requirements. Suitable for applications such as oil mist lubricating air
lines, but NOT suitable for the transfer of petroleum products. Closely plied
reinforcement of high tensile textile core provides excellent coupling retention and kink
resistance. 4:1 safety factor.
CONSTRUCTION:
Tube:
Black EPDM
Reinforcement: Multiple Textile Plies
Cover:
EPDM
Pressure Rating:
Varies from 200 to 300 psi depending on size.
Temperature Range:
-40°F to +212°F
Fittings:
Standard Fittings with Clamps
Colors:
Available in Red or Black
Reel Length:
Varies from 200' to 800' depending on size.
Sizes:
Available from 1/4" to 1½" I.D.
Packaging: Most sizes sold by the foot; discount for full reel purchase. |
 |
|
Parker®
Jiffy™ (Push-on) Hose
For Transferring Air, Water and Oil
This oil resistant hose is excellent for use with air, water, mild chemicals
and various petroleum products. Light, flexible and
couples in a jiffy; no clamps or special tools needed. Special braid angle for quick
and secure push-on coupling retention. Available in various colors for color coding
lines. Flame resistant cover is branded with MSHA legend. 4:1 safety factor.
CONSTRUCTION:
Tube:
Black Nitrile
Reinforcement: One Textile Braid
Cover:
Neoprene
Pressure Rating:
300 psi
Temperature Range:
-40°F to +200°F
Fittings:
Push-on Fittings or Standard Fittings with Clamps
Colors:
Available in black, blue, red, gray or green.
Reel Length:
Varies from 400' to 650' depending on size.
Sizes:
Available from 1/4" to 3/4" I.D.
Packaging: Sold by the foot; discount for full reel purchase. |
 |
|
Parker®
Grizzly™ Extra Heavy Duty Industrial Hose
For Transferring Air, Water and Oil
Grizzly™ is a premium multiple purpose hose which combines the toughness of a braided
hose with the flexibility of a spiral hose. Grizzly™ is extremely abrasion
resistant and oil resistant. The hose meets MSHA IC-1230/20 flame resistance
requirements and is non-conductive, with a minimum one megohm resistance per inch at 1000
volts DC.
CONSTRUCTION:
Tube:
Black Nitrile
Reinforcement: 4 Spiral Textile
Cover:
Yellow NBR/PVC Blend
Pressure Rating:
500 psi
Temperature Range:
-40°F to +212°F
Fittings:
Standard Fittings with Clamps or Hydraulic Crimp Type
Colors:
Available in Yellow Only
Reel Length:
Varies from 300' to 750' depending on size.
Sizes:
Available from 1/4" to 1" I.D.
Packaging: Sold by the foot; discount for full reel purchase. |
 |
|
PVC
General Purpose Hose
For Transferring Air, Water and Mild Water-Soluble
Chemicals
An affordable, general purpose hose ideal
for low temperature applications, and for the transfer of air, water and
mild water-soluble chemicals. Also, general industrial applications
including factory air lines, automation machinery, pneumatic lines and
tools, nail guns, paint spray systems, etc. Resistant to the ozone, U.V.
and abrasion, and moderately resistant to oil. The braided cord polyester
reinforcement results in an extremely flexible hose. Electrically
non-conductive and suitable for high working pressure under harsh
conditions.
CONSTRUCTION:
Tube:
Black PVC
Reinforcement: High Tensile Strength Yarn
Cover:
PVC
Pressure Rating:
Varies from 150 to 300 psi depending on size.
Temperature Range:
+25°F to +150°F
Colors:
Available in Red or Blue
Reel Length:
Varies from 200' to 500' depending on size.
Sizes:
Available from 1/4" to 1" I.D.
Packaging: Sold in full reels only. |
 |
|

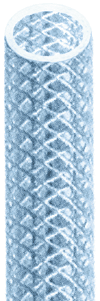

Reinforced PVC Hose
For Transferring Air, Water & Other Liquids
Crystal clear for see-through confirmation of flow,
this silicone-free hose is good for general industrial applications,
including factory air and water lines, automation machinery, pneumatic
lines, food and beverage dispensing lines, potable water transfer, air
breathing lines, and packaging machines. Braid cord polyester
reinforcement results in an extremely flexible hose. Lightweight and
non-marking. Suitable for high working pressure under harsh conditions.
CONSTRUCTION:
Tube:
PVC
Reinforcement: Spiraled Polyester Yarn & Multiple Longitudinal
Polyester Yarn
Cover:
PVC
Pressure Rating:
Varies from 70 to 275 psi depending on size.
Temperature Range:
+25°F to +150°F
Colors:
Available in Clear Only
Reel Length:
Varies from 100' to 300' depending on size.
Sizes:
Available from 1/4" to 2" I.D.
Packaging: Sold by the foot; discount for full reel purchase. |
 |
Self-Coiling
Hose
For Transferring Air
A safe, convenient hose for all pneumatic tools. Standard duty air hose
assembly stretches and recoils like a
telephone cord. Lightweight, abrasion resistant and completely oil proof. All
assemblies include male swivel fittings with spring guard included.
CONSTRUCTION:
Tube:
Nylon 11
Reinforcement: None
Cover:
Nylon 11
Pressure Rating:
200 psi at +70°F
Temperature Range:
-40°F to +180°F
Fittings:
Included
Colors:
Available in Yellow Only
Length:
Available in 12', 25', and 50' lengths.
Sizes:
Available in 1/4 and 3/8 NPT.
Packaging: Sold individually. |
 |
|
|
|
|
|
 |
|
