Nozzle Tips

CAED Technology Nozzle Tips     CAED Technology Nozzle Tips


Services For Plastics, Inc. is proud to have designed and built the highest performance nozzle tips available for processing of difficult plastic materials. CAED Technology™ nozzle tips contain proprietary flow geometry, machining and surface finish technology that allow you the end user to increase productivity and decrease scrap. The nozzle tips can pay for themselves in just a few hours of increased production.

If you are having a problem with Stringing, Drool or Cold Slugs, think CAED Technology™.

Design Highlights:
  • Standard and Extended Lengths
  • Beryllium Copper or Premium Heat Treated Tool Steel
  • Thru-hardened for Superior Life
  • Fits all Replaceable Tip Nozzles
  • 7/8"-14 Thread
  • 1/2" Rear Opening
  • Lengths from 1-1/2" to 4-3/4"
  • Orifice Sizes from 1/16" to 1/2"
  • Made in the U.S.A.
Standard Length
Description Material O.A.L.
Standard Length
Nozzle Tip
Beryllium Copper 1-1/2"
Premium Heat Treated Tool Steel 1-1/2"

Extended Length

Description Material O.A.L.
Extended Length
Nozzle Tip
Beryllium Copper 2-3/4"
3-3/4"
4-3/4"
Premium Heat Treated Tool Steel 2-3/4"
3-3/4"
4-3/4"


Type: Nylon or ABS?

"Nylon" = Polyamides and Other Low-Viscosity Materials
"ABS = ABS, PVC and Other Shear-Sensitive Materials

Material: Beryllium Copper or Premium Heat Treated Tool Steel?

"B" = Beryllium Copper to Control Stringing and Drooling with Nylon
"S5" = Premium Heat Treated Tool Steel to Minimize Cold Slugs with ABS

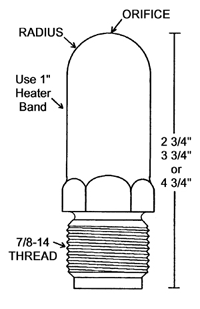

Extended Nozzle Tip

EXTENDED LENGTH

Standard Nozzle Tip

STANDARD LENGTH

To Order, Please Provide the Following Information:

  • Specify Type: For Nylon or ABS
  • Speify Material: Beryllium Copper or Premium Meat Treated Tool Steel
  • Specify Radius
  • Specify Orifice: 1/18" to 1/2"
  • Specify Length: For extended nozzle tips only
  • Optional Thermocouple Hole: Add $20.00 Each to the Price
