Water Jumpers



Quick Connect Water Jumpers


FEATURES:

  • For Use With Push-Lock Hose, No Hose Clamps Required

  • Coupler Sleeve Twists to Lock Preventing Accidental Disconnect

  • Oversized and Unrestricted Flow Path Maintains Full Flow Rate of Hose Used

  • Eliminates Bulky Hose Loops

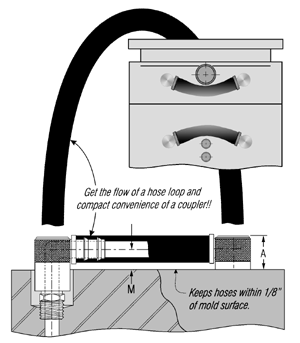

  • Compact Design Neatly and Safely Holds Cooling Lines Close to the Mold Surface

  • Stock Only One Part Number for Any Hose Size — No Special Tubes or Length Restrictions

  • Compatible with All Major Mold Connection Systems

  • Unlimited Installation Options — Fits Around Obstacles and Installs in Compact Spaces

  • Viton Seals Provide for Temperatures Up To 400°F

  • All Brass and Stainless Steel Construction

HOSE ID SIZES:  1/4" to 1/2"

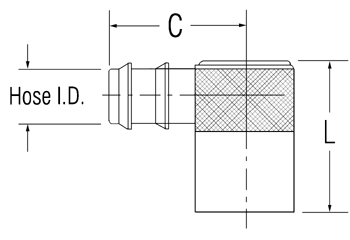

PART NO. FITS PLUG SERIES NO. HOSE I.D. "L" "C" "M" "A"
WJ200-4 200 1/4" 1" 1-1/4" 3/8" 5/8"
WJ200-5 200 5/16" 1" 1-1/4" 3/8" 5/8"
WJ200-6 200 3/8" 1" 1-1/4" 3/8" 5/8"
WJ300-6 300 3/8" 1-7/16" 1-9/16" 1/2" 7/8"
WJ300-8 300 1/2" 1-7/16" 1-9/16" 1/2" 7/8"
